  • Multilayer PCB Vehicle Mainboard

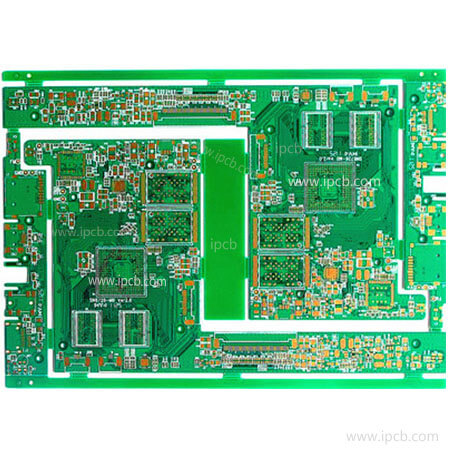

    Multilayer PCB Vehicle Mainboard

    Model :  Multilayer PCB Vehicle Mainboard

    Material :  KB FR-4

    Layer :  6Layers Multilayer PCB

    Color : Green/White

    Finished Thickness :  1.2mm

    Copper Thickness :  1OZ

    Surface Treatment :  OSP PCB

    Min Trace :  BGA 3mil(0.075mm)

    Min Space :  BGA 3mil(0.075mm)

    Characteristic : Automobile products meet TS16949 certification

    Application : Multilayer PCB vehicle mainboard


    Product details Technical specification

    The rapid development of electronic industry promotes the rapid development of many industries. In recent years, electronic products are more and more widely used in automobile industry. The traditional automotive industry has made more efforts in mechanics, power, hydraulics and transmission. However, the modern automotive industry relies more on electronic applications which play an increasingly important and potential role in the automotive industry. Automatic electrification is all about processing, sensing, information transmission and recording, which printed circuit boards (PCBs) can never achieve. Due to the needs of automobile modernization and digitization, as well as people's requirements for automobile safety, comfort, simple operation and digitization, PCB has been widely used in automobile industry, from ordinary single-layer PCB, double-layer PCB to complex multilayer PCB. Layer PCB or high density interconnect (HDI) PCB, which may have cross layer blind holes or double layer construction layers.

    ipcb realizes high reliability and safety of vehicle PCB. Strict strategies and measures must comply with the requirements of vehicle PCB manufacturer.

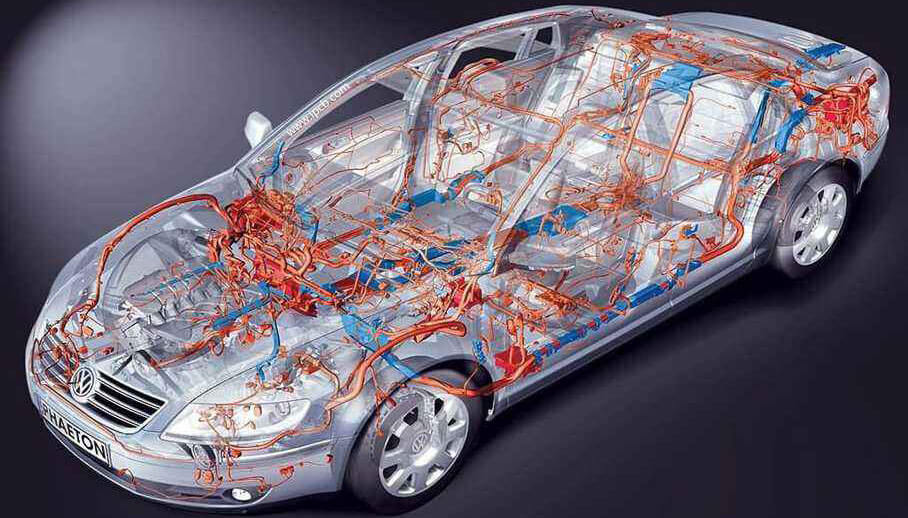

    vehicle PCB

    1. ipcb is the ISO / TS16949 system certification for automobile product quality control.

    2. ipcb conforms to ISO9001, CQC quality system certification at home and abroad.

    3. ipcb strictly in accordance with the IPC standards and customer requirements of multiple control, to ensure that the shipment of products to meet customer quality requirements.

    4. ipcb strictly implements quality PDCA process to continuously improve product performance.



    For pcb technical problems, ipcb knowledgeable support team is here to help you with every step. You can also request pcb quotation here. Please contact E-mail sales@ipcb.com

    We will respond very quickly.

    Model :  Multilayer PCB Vehicle Mainboard

    Material :  KB FR-4

    Layer :  6Layers Multilayer PCB

    Color : Green/White

    Finished Thickness :  1.2mm

    Copper Thickness :  1OZ

    Surface Treatment :  OSP PCB

    Min Trace :  BGA 3mil(0.075mm)

    Min Space :  BGA 3mil(0.075mm)

    Characteristic : Automobile products meet TS16949 certification

    Application : Multilayer PCB vehicle mainboard
