Multilayer PCB

Multilayer PCB

Multilayer PCB

Multilayer PCB

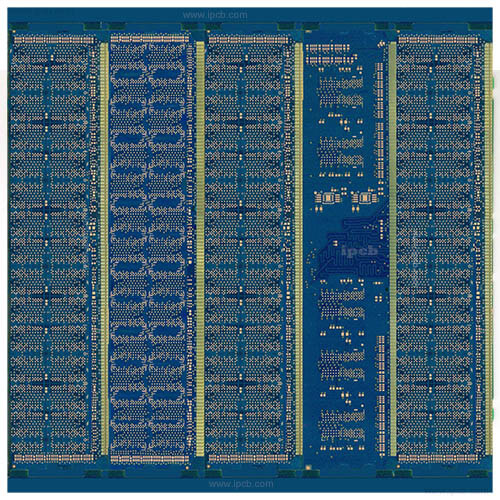

  • 24 Layers Communication backplane PCB
    24 Layers Communication backplane PCB

    Model :  24 Layers Communication backplane PCB

    Material :  Panasonic m6

    Layer :  24Layers

    Color : Blue/White

    Finished Thickness :  2.0mm

    Copper Thickness :  1OZ

    Surface Treatment :  Immersion Gold

    Min Trace :  6mil(0.15mm)

    Min Space :  6mil(0.15mm)

    characteristic : High multilayer

    Application : communication backplane pcb


    Product details Technical specification

    Five reasons why communication PCB chooses ipcb

    1. Selection Rogers.Taconic.Arlon . Nelco.Isola , Panasonic and other top high-frequency PCB materials, high-speed PCB materials

    2. Plasma plasma degumming machine is specially equipped for communication PCB, which can produce the rare surface treatment process of ordinary PCB Factory: silver plating, tin plating, silver deposition and tin deposition

    3. Mature high frequency PCB mixed voltage technology: FR4 + PTFE, FR4 + 408hr, FR4 + Rogers, ceramic + fr43mil / 3mil, the impedance tolerance can be controlled within ± 5%

    4. The R & D team of more than 30 people has rich experience in high-frequency PCB materials and high-speed PCB materials to ensure stable product performance

    5. Through ISO system certification, strictly in accordance with international quality system standards control, strict implementation of quality PDCA cycle process, continuous improvement of product performance



    For pcb technical problems, ipcb knowledgeable support team is here to help you with every step. You can also request pcb quotation here. Please contact E-mail sales@ipcb.com

    We will respond very quickly.

    Model :  24 Layers Communication backplane PCB

    Material :  Panasonic m6

    Layer :  24Layers

    Color : Blue/White

    Finished Thickness :  2.0mm

    Copper Thickness :  1OZ

    Surface Treatment :  Immersion Gold

    Min Trace :  6mil(0.15mm)

    Min Space :  6mil(0.15mm)

    characteristic : High multilayer

    Application : communication backplane pcb



    For pcb technical problems, ipcb knowledgeable support team is here to help you with every step. You can also request pcb quotation here. Please contact E-mail sales@ipcb.com

    We will respond very quickly.
