  • 6Layers Half Hole Car Core PCB

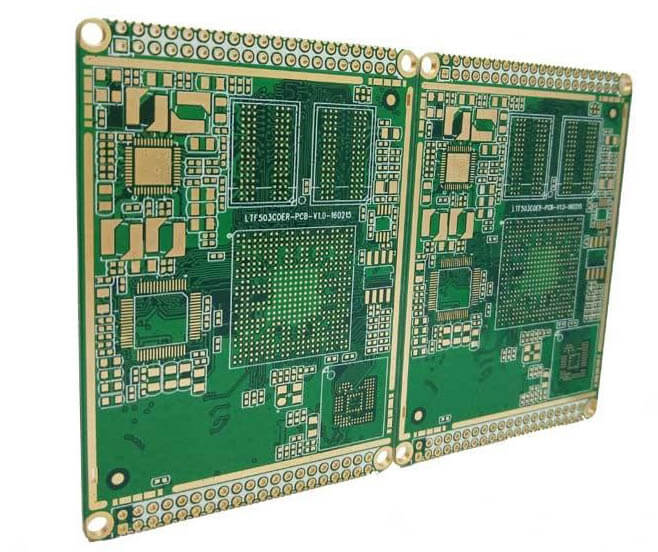

    6Layers Half Hole Car Core PCB

    Model : Half Hole Car Core PCB

    Material : TG170 High TG FR4

    Layer :  6Layers

    Color : Green/White

    Finished Thickness :  0.8mm

    Inner layer copper thickness :  1OZ

    Outer layer copper thickness : 0.5OZ

    Surface Treatment :  Immersion Gold

    Min Trace/Min Space :  4mil(0.1mm)/4mil(0.1mm)

    Pore size of half hole : 0.5mm

    Characteristic : Half hole PCB

    Application : half hole car core PCB

    Product details Technical specification

    iPcb Circuits Limited(ipcb®.com) is mainly engaged in the production of High Frequency PCB, Microwave PCB, Double-sided PCB, Multilayer PCB. Professional production experience of High Frequency PCB, Microwave PCB for power divider, coupler, combiner, power amplifier, base station, 3G antenna, 4G antenna, 5G antenna, radar microwave, main substrate f4b, (polytetrafluoroethylene, Rogers, Taconic) high frequency PCB, FR4 PCB, aluminum substrate PCB. Materials with dielectric constant of 2.2-20 can be stocked at any time to provide timely high frequency microwave PCB sample service.


    Msb786 is the solution of vehicle entertainment and navigation system. The main chip specification is arm cortex-a9 dual core (neon) CPU with 512KB L2 cache; 3D graphic GPU supports OpenGL es1.1 / 2.0; DRAM memory interface supports DDR3 16 bit / 8-bit * 2, up to 1gmhz; NAND interface supports I- NAND.Movi -NAND, SLC / MLC NAND flash, up to 60 bit ECC; 1080p Full HD decoding and 720p H.264 encoding are supported; It supports LVDS / TTL / TTL + TCON panel with resolution up to 1280 x 800; supports CVBS and HDMI v1.4 output; supports Android 4.1 operating system

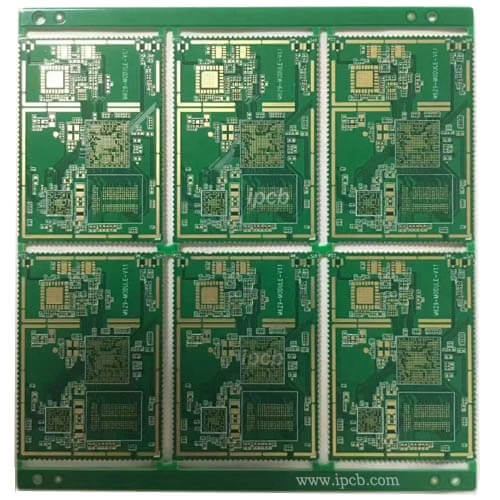

     car pcb


    For pcb technical problems, ipcb knowledgeable support team is here to help you with every step. You can also request pcb quotation here. Please contact E-mail sales@ipcb.com

    We will respond very quickly.

    Model : Half Hole Car Core PCB

    Material : TG170 High TG FR4

    Layer :  6Layers

    Color : Green/White

    Finished Thickness :  0.8mm

    Inner layer copper thickness :  1OZ

    Outer layer copper thickness : 0.5OZ

    Surface Treatment :  Immersion Gold

    Min Trace/Min Space :  4mil(0.1mm)/4mil(0.1mm)

    Pore size of half hole : 0.5mm

    Characteristic : Half hole PCB

    Application : half hole car core PCB
