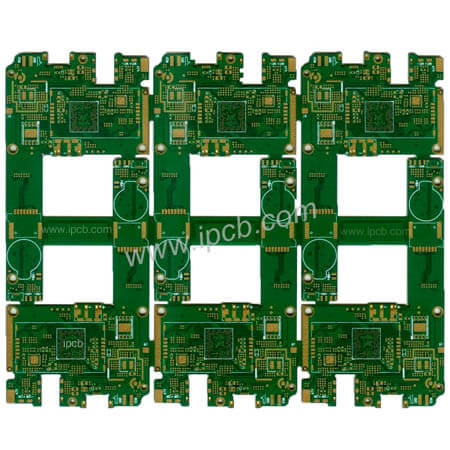

  • 8L HDI PCB 2+N+2 Mobile Phone Board PCB
    8L HDI PCB 2+N+2 Mobile Phone Board PCB

    Model     :8L 2+N+2 Mobile Main Board

    Material  : FR4
    Construction:8L 2+N+2 HDI
    Finished Thickness:1.0mm
    Copper Thickness  :1OZ
    Color     :Green /White
    Surface Treatment:Immersion Gold
    Min Trace / Space:3.5mil/3.5mil
    Min Hole:Mechanical Hole0.2mm,Laser Hole0.1mm
    Application: Mobile Main Board

    Product details Technical specification

    Company introduction

    iPcb Circuits Limited(iPcb®) is a high-tech enterprise focus on the R&D and production of precision PCB prototype. iPcb independently developed the first PCB Automatic Quotation System(PAQS) in the industry, which automatically connected our PCB factory to realize intelligent service and PCB prototype rapid fabrication. Our ultimate goal is to build an Internet + industry 4.0 intelligent PCB factory cluster to provide professional PCB technology and PCB prototype fabrication services for customers.


    iPcb® manufactures microwave radio frequency(RF) PCB, hybrid high frequency PCB, (1-70layers) multilayer PCB, HDI PCB, rigid-flex PCB, metal based PCB, ceramic PCB. We have deep research on PCB with special requirements such as blind buried hole PCB, back drilling PCB, step slot PCB, IC carrier PCB, ultra thick copper PCB, etc

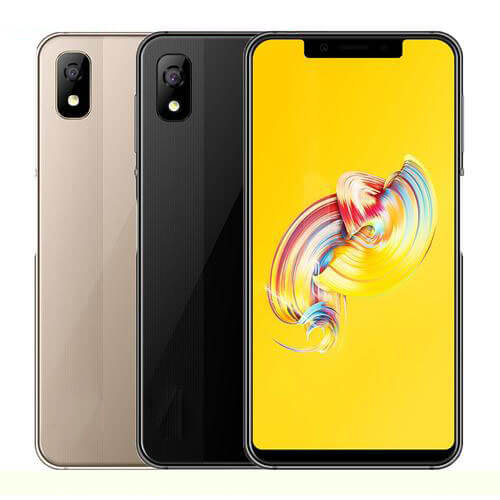

    Mobile phone

    ipcb®.com Products:

    Radio/Microwave/Hybrid High Frequency , FR4 Double/Multi-Layer , 1~3+N+3 HDI,Anylayer HDI , Rigid-Flex , Blind Buried,  Blind Slot ,  Backdrilled ,IC ,Heavy Copper Board and etc.PCB apply for Industry 4.0,  Communication, Industrial Control, Digital,  Power supply, Computer, Automotive, Medical, Aerospace, Instruments, Military, Interne and other fields.



    Surface finishing: OSP / ENIG / HASL LF / Plated gold / flash gold / Immersion Tin / Immersion silver / Electrolytic gold


    Capacity: Golden finger / Heavy copper / Blind buried via / impendance control / filled with resion / carbon ink / backdrill / countersink / depth drilling / half plated hole / pressfit hole / peelable blue    mask / peelable solderstop / thick copper / oversize


    Material: Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870 and Arlon / Isola / Taconic / PTFE F4BM / Teflon material etc.


    Layer: 2L 4L 6L 8L 10L 12L 14L 16L 18L 20L 22L 24L 26L 28L 30L


    Dielectric Constant (DK):  2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2


    Application: Consumer Electronics / Military/Space / Antenna & Communications System / High Power / Medical / Automotive / Industrial / Handheld device cellular / Wifi Antenna / Telematics and infotainment / Wifi/Computing/Radar/Power Amplifiers PCB




    For pcb technical problems, ipcb knowledgeable support team is here to help you with every step. You can also request pcb quotation here. Please contact E-mail sales@ipcb.com

    We will respond very quickly.

    Model     :8L 2+N+2 Mobile Main Board

    Material  : FR4
    Construction:8L 2+N+2 HDI
    Finished Thickness:1.0mm
    Copper Thickness  :1OZ
    Color     :Green /White
    Surface Treatment:Immersion Gold
    Min Trace / Space:3.5mil/3.5mil
    Min Hole:Mechanical Hole0.2mm,Laser Hole0.1mm
    Application: Mobile Main Board
