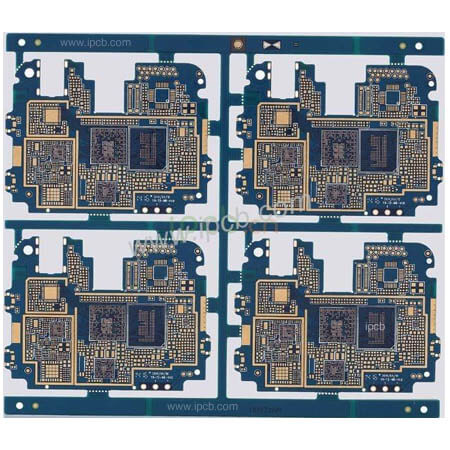

Model : 8Layers 2+N+2 HDI pcb
Material ：FR-4
Layer ：8L 2+N+2 HDI
Color ：Blue/White
Finished Thickness：1.0mm
Copper Thickness ：inner1OZ,outer0.5OZ
Surface Treatment ：Immersion Gold
Min Trace / Space ：3mil/3mil
Min Hole ：Mechanical hole 0.2mm，Laser Hole 0.1mm
Application ：Hand-held electronic equipment pcb
iPcb Circuits Limited(ipcb®.com) is a high-tech enterprise focus on the R&D and production of high-end PCB. ipcb®.com has independently developed the PCB automatic quotation and order system, which is the first in the industry, and our final goal is the Internet + to build a smart PCB factory of industry 4.0, providing customers with professional PCB technology and production services.
ipcb®.com Products:
Radio/Microwave/Hybrid High Frequency , FR4 Double/Multi-Layer , 1~3+N+3 HDI，Anylayer HDI , Rigid-Flex , Blind Buried, Blind Slot , Backdrilled ,IC ,Heavy Copper Board and etc.PCB apply for Industry 4.0, Communication, Industrial Control, Digital, Power supply, Computer, Automotive, Medical, Aerospace, Instruments, Military, Interne and other fields.
For pcb technical problems, ipcb knowledgeable support team is here to help you with every step. You can also request pcb quotation here. Please contact E-mail sales@ipcb.com
We will respond very quickly.
