  • High Speed Rigid-Flex PCB(R-FPCB) for Module

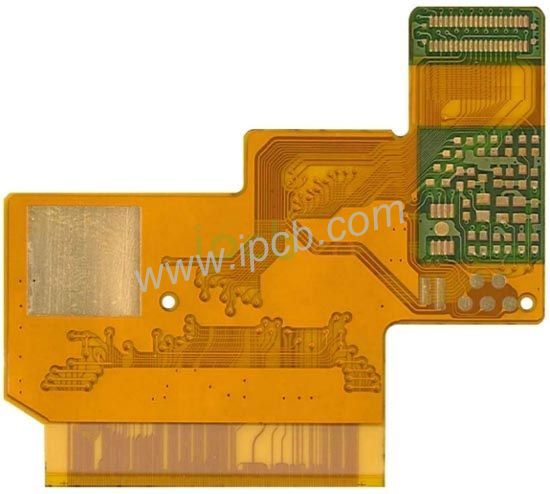

    High Speed Rigid-Flex PCB(R-FPCB) for Module

    Model : 8layers High Speed Rigid-Flex PCB(R-FPCB)

    Material : FR4 +PI

    Layer : Rigid 6L  + Flex 2L

    Copper Thickness : 1OZ

    Finished Thickness : 1.0mm

    Surface Treatment  : Immersion Gold

    Min Hole : 0.2mm

    Gold thickness 2U

    Min Trace / Space  : 3mil/3mil

    Application : Module pcb


    Product details Technical specification


    iPcb Circuits Limited(ipcb®.com) is a high-tech enterprise focus on the R&D  and production of high-end PCB. ipcb®.com has independently developed the  PCB automatic quotation and order system, which is the first in the industry,  and our final goal is the Internet + to build a smart PCB factory of industry 4.0, providing customers with professional PCB technology and production services.


    ipcb®.com Products:

    Radio/Microwave/Hybrid High Frequency , FR4 Double/Multi-Layer , 1~3+N+3 HDI,Anylayer HDI , Rigid-Flex , Blind Buried,  Blind Slot ,  Backdrilled ,IC ,Heavy Copper Board and etc.PCB apply for Industry 4.0,  Communication, Industrial Control, Digital,  Power supply, Computer, Automotive, Medical, Aerospace, Instruments, Military, Interne and other fields.




    Surface finishing: OSP / ENIG / HASL LF / Plated gold / flash gold / Immersion Tin / Immersion silver / Electrolytic gold


    Capacity: Golden finger / Heavy copper / Blind buried via / impendance control / filled with resion / carbon ink / backdrill / countersink / depth drilling / half plated hole / pressfit hole / peelable blue    mask / peelable solderstop / thick copper / oversize


    Material: Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870 and Arlon / Isola / Taconic / PTFE F4BM / Teflon material etc.


    Layer: 2L 4L 6L 8L 10L 12L 14L 16L 18L 20L 22L 24L 26L 28L 30L


    Dielectric Constant (DK):  2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2


    Application: Consumer Electronics / Military/Space / Antenna & Communications System / High Power / Medical / Automotive / Industrial / Handheld device cellular / Wifi Antenna / Telematics and infotainment / Wifi/Computing/Radar/Power Amplifiers



    For pcb technical problems, ipcb knowledgeable support team is here to help you with every step. You can also request pcb quotation here. Please contact E-mail sales@ipcb.com

    We will respond very quickly.

    Model : 8layers High Speed Rigid-Flex PCB(R-FPCB)

    Material : FR4 +PI

    Layer : Rigid 6L  + Flex 2L

    Copper Thickness : 1OZ

    Finished Thickness : 1.0mm

    Surface Treatment  : Immersion Gold

    Min Hole : 0.2mm

    Gold thickness 2U

    Min Trace / Space  : 3mil/3mil

    Application : Module pcb



    For pcb technical problems, ipcb knowledgeable support team is here to help you with every step. You can also request pcb quotation here. Please contact E-mail sales@ipcb.com

    We will respond very quickly.
